Imagine an AI assistant that doesn’t just speak eloquently but also knows where to look for the latest facts, can connect the dots between complex ideas, and explain how it arrived at its answers. That’s exactly what Retrieval-Augmented Generation (RAG) combined with Knowledge Graphs (KGs) promises: the fluency of advanced language models married to the precision and structure of graph-based knowledge. In this post, we’ll journey from the foundations of RAG, dive into the power of KGs, and explore how their integration paves the way for AI that’s not only informative but trustworthy, explainable, and ever-evolving.
The Spark: Why We Need RAG
LLMs like GPT-4 have redefined what machines can write, but they’re not perfect:
- Staleness: Trained on data up to a point in time, they can’t update themselves with breaking news or new research.
- Hallucinations: Without verifiable sources, they sometimes fabricate convincing but incorrect facts.

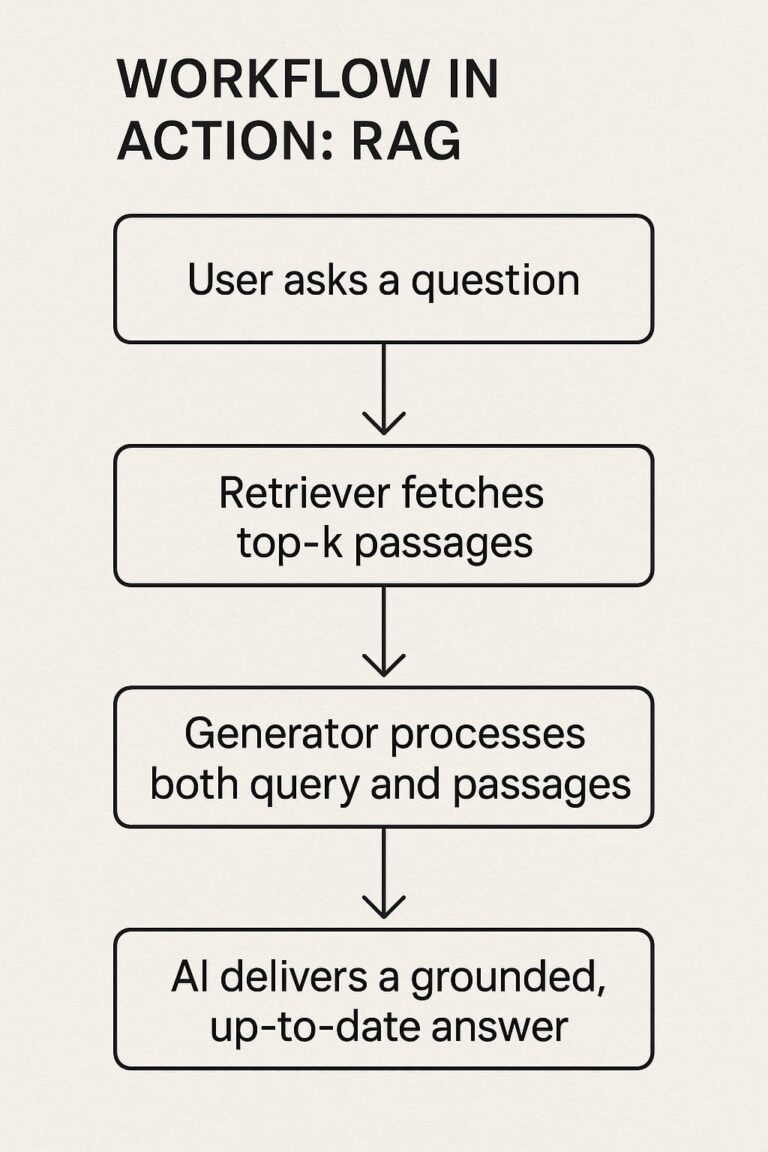

RAG solves these problems by weaving in real-time retrieval: when you ask a question, the system fetches relevant snippets from an external corpus (say, a news database or scientific archive) and feeds them back into the model. Suddenly, your AI assistant can ground its words in up-to-date evidence, boosting accuracy and credibility.
Key Components of RAG
- Retriever grabs the most pertinent documents using:
- Sparse retrieval (e.g., BM25) for exact keyword matches
- Dense retrieval (e.g., FAISS-based embeddings) for semantic similarity
- Generator (e.g., T5, BART, GPT) stitches together the user query and fetches snippets to craft a coherent response.
- Fusion Strategy defines how to blend retrievals and queries:
- Prompt prepending: add the snippets before the question
- In-context examples: show the model a worked example of query + facts
- Late fusion: inject retrieval embeddings directly into the model’s internal layers
Beyond Text: The Case for Knowledge Graphs
While RAG supercharges LLMs with fresh data, it still treats information as unstructured text—think pages of prose rather than nodes and relationships. That introduces challenges:
- Redundancy: Overlapping or repeated information across documents.
- Ambiguity: Hard to tell which entity or concept a snippet refers to.
- Limited Reasoning: No explicit pathway for connecting multiple hops of inference.

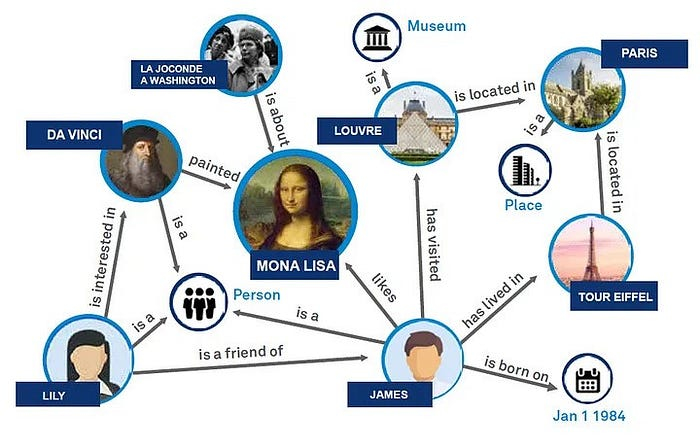

Knowledge Graphs: structured maps of entities (nodes) and their relationships (edges), enriched with properties. This mirrors how we humans think—entities linked by meaning.
Core KG Concepts
- Nodes represent real-world items (e.g., people, places, products).
- Edges denote labeled relationships (e.g., “authored,” “located in”).
- Properties add context (e.g., a “Person” node’s name, birthdate).
Why KGs Matter for AI
- Semantic Clarity: Explicit connections reduce confusion over ambiguous terms.
- Efficient Retrieval: Instead of long paragraphs, the system pulls only the relevant subgraph—cutting out noise.
- Explainable Reasoning: You can trace exactly which nodes and edges influenced an answer.
The Perfect Union: Graph RAG in Action
Imagine combining RAG’s freshness with KG’s structure. Here’s how Graph RAG elevates AI:
- Building the Graph: Collate data from text, databases, or CSVs. Use NLP (NER named entity recognition, relation extraction) to populate nodes and edges. Store in graph databases like Neo4j or Memgraph.
- Turning Graphs into Vectors: Convert nodes and relationships via:
- Node2Vec (random-walk embeddings)
- TransE (translational models)
- Graph Neural Networks (aggregating neighbor information)
- Graph-Based Retrieval: When a query arrives, it’s converted into an embedding and matched against the graph’s embeddings using fast ANN methods like HNSW or FAISS. Advanced query reformulation leverages graph paths to include semantically related entities.
- Dynamic Prompt Assembly: Retrieved subgraphs are assembled into the LLM prompt via:
- Pre-injection: feed the graph facts before the query
- In-context injection: weave the graph data alongside
- Post-injection: refine the model’s draft with additional facts
- Grounded Generation: The LLM synthesizes a response anchored in graph facts, ensuring accuracy and offering a breadcrumb trail of reasoning paths.
Real-World Wins and Challenges
Healthcare: Graph RAG systems can traverse patient data, drug interactions, and research literature to suggest personalized treatment plans—explaining each recommendation by highlighting the graph paths of related trials and outcomes.
Finance: From fraud detection to risk analysis, KGs map transactions, entities, and regulatory rules. Graph RAG can answer compliance questions with pinpoint citations back to specific nodes (e.g., regulatory clauses).
E-Commerce: Product and user graphs enable nuanced recommendations. Ask, “What laptop fits my design workflow under $1,500?” and Graph RAG not only lists options but shows the relationship between specs, user reviews, and price tiers.
Challenges Ahead
- Scalability: Large graphs can strain storage and retrieval; efficient indexing is key.
- Graph Quality: Garbage in, garbage out—ontologies and schema design must be rigorously curated.
- Integration Complexity: Stitching together graph pipelines, embedding models, and LLM prompt engineering demands cross-disciplinary expertise.
Crafting Your Own Graph RAG System
- Define Your Schema: Collaborate with domain experts to map out key entities and relationships. Aim for modular, reusable ontologies (OWL, RDF).
- Populate and Validate: Extract entities/relations from text, link to existing nodes, and continuously refine with feedback loops.
- Choose Embedding Techniques: Start simple (Node2Vec) and iterate toward GNNs as your use case demands deeper reasoning.
- Optimize Retrieval: Leverage ANN indexes and query reformulation to balance speed and relevance.
- Engineered Prompts: Experiment with pre-, in-context, and post-injection to find the sweet spot for your domain.
Monitor and Refine: Track usage patterns, errors, and user feedback to evolve both your graph and generation strategies.
Conclusion
In 2025, AI’s next frontier is not just smarter text generation—it’s turning words into structured, traceable knowledge. Graph RAG stands at this intersection, blending the nuance of language with the rigor of graphs. As you embark on your own Graph RAG journey, remember: success lies in the synergy between crisp schema design, robust retrieval, and artful prompt engineering. The result? AI that doesn’t just answer—it reasons and explains, just like us.
